- Type:Furniture Hinge
- Mail packing:N
- Place of Origin:CN;GUA
- Brand Name:Metalway
- Model Number:MF-006B

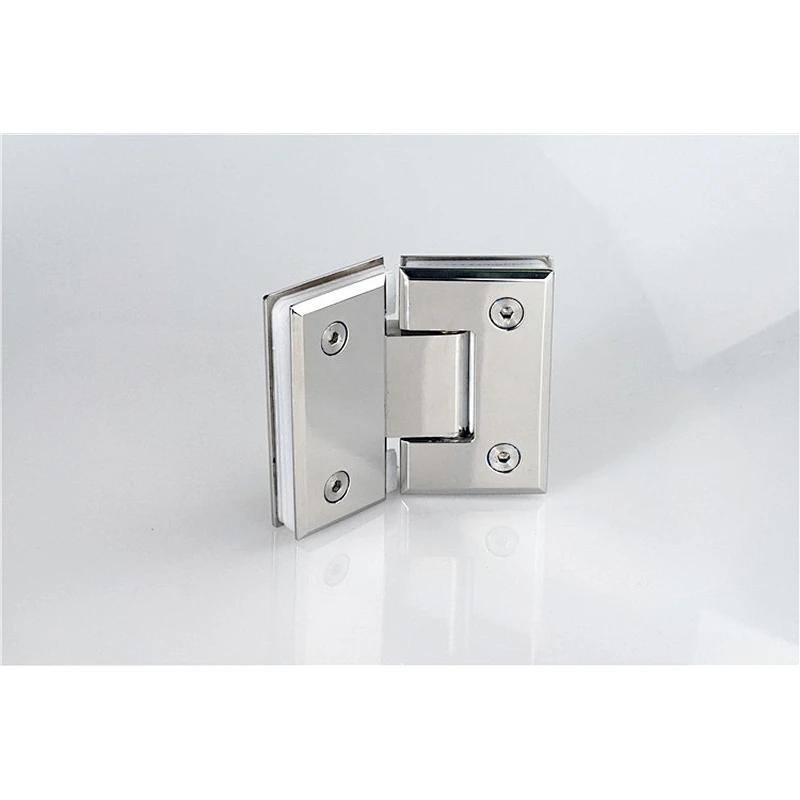

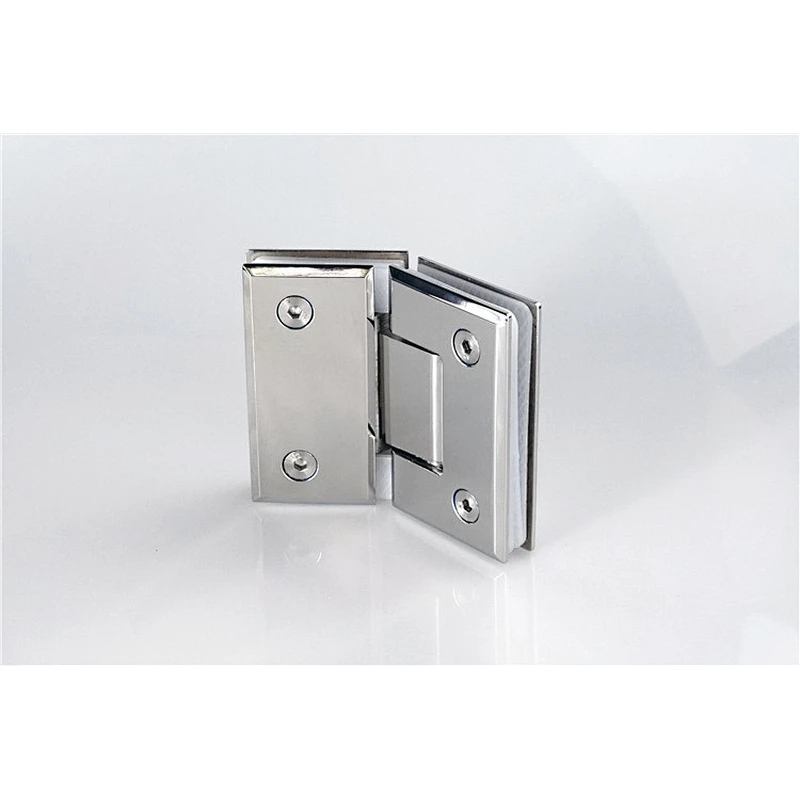

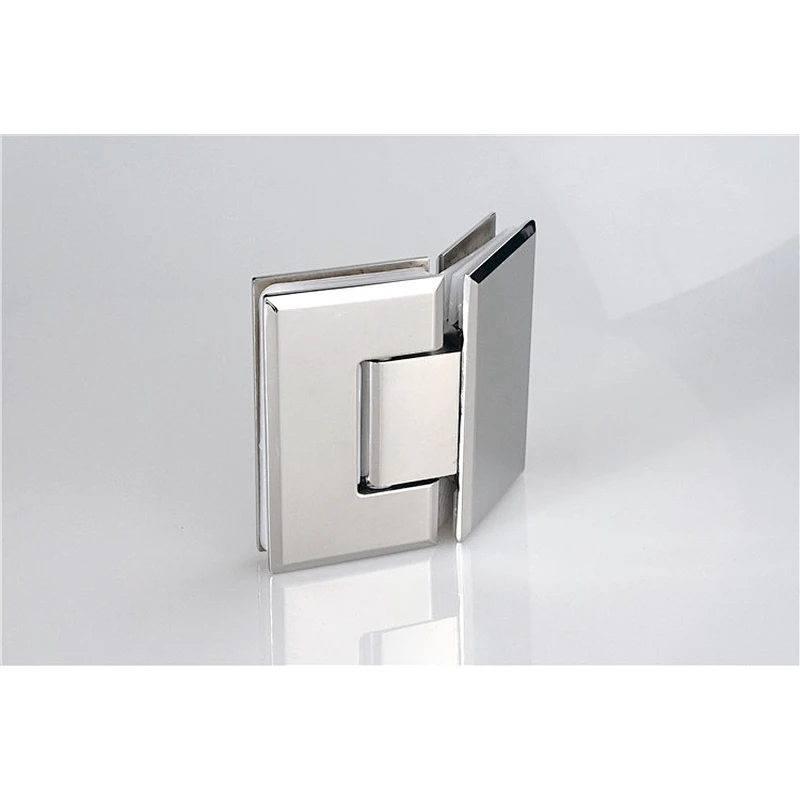

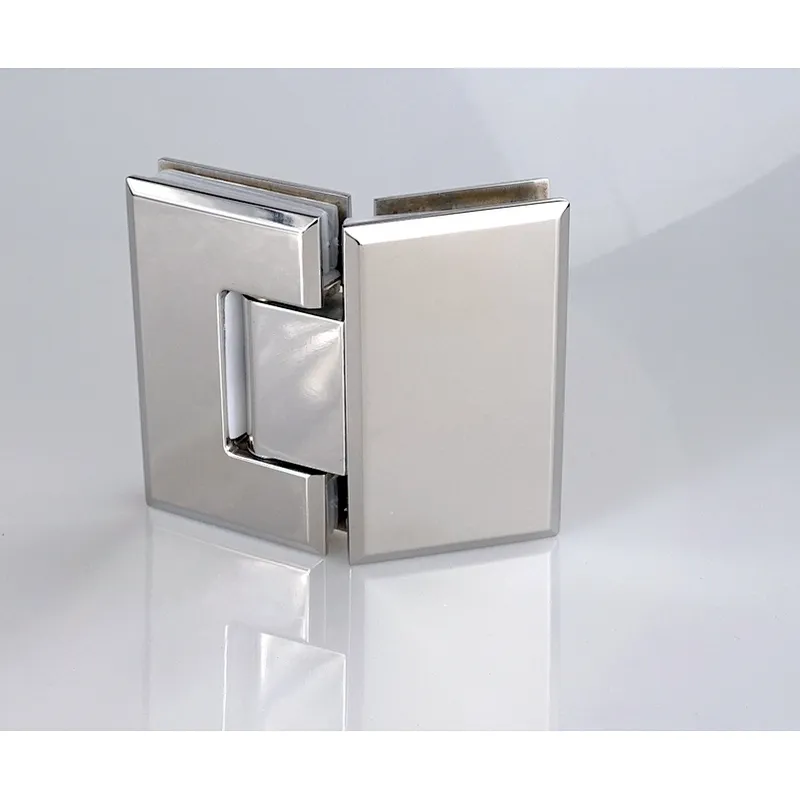

- Product name:Heavy Duty Stainless Steel Shower Hinge
- Material:Stainless Steel 201/304
- Finish:Mirror/ Satin
- Glass Thickness:8-12mm
- Angle:135 degree
- Type:Door & Window Hinges
- Tech:Casting/ Stamping
- Bearing:45kgs/pair
- Application:Shower room, office, hotel, house
- MOQ:120pcs
Product Description
Product Name: | Heavy Duty Stainless Steel Shower Hinge | ||||||
Item: | MF-006 | ||||||
Material: | Stainless Steel | ||||||
Finish: | Mirror/ Satin | ||||||
Weight: | 695g | ||||||
Type: | Door & Window Hinges | ||||||
Apllication: | Shower room, office, hotel, house | ||||||
Bearing: | 45kgs/pair | ||||||
Application
Product Application
135 degree door hinge designed to support a variety of large door materials and panels via 2 fixed mounting bolts per side. Can be opened inward or outward depending on fitting requirements. This hinge is designed for shower enclosures and quadrants which have a 135 degree angle between the fixed panel of glass and the glass door.
Manufactured from a satin stainless steel, this heavyweight high quality fixture can be fitted in most environments including the bathroom and kitchen.

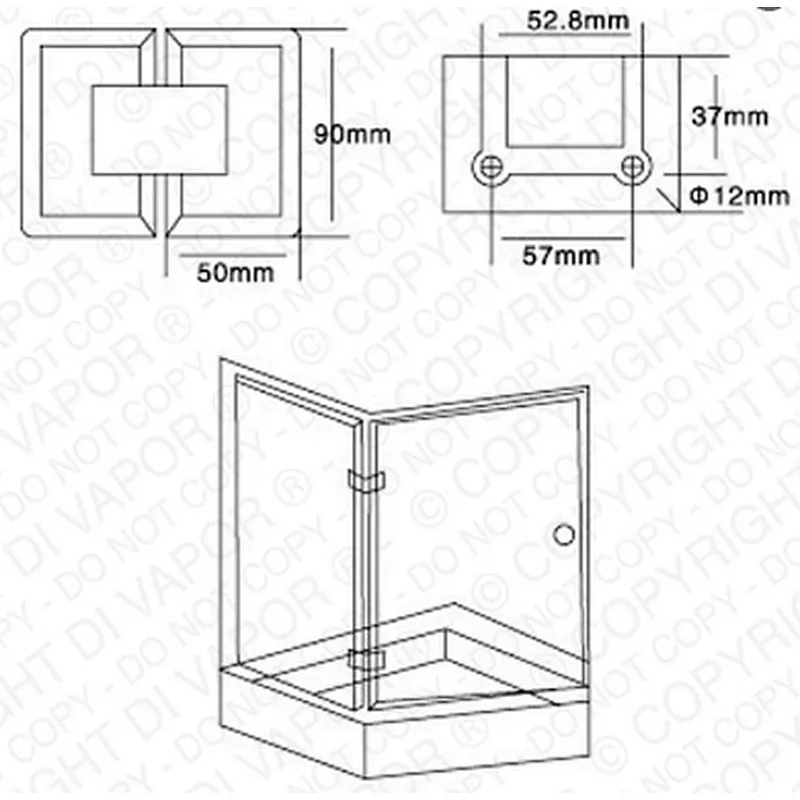

Typically fitted directly to a glass door via two mounting bolts included on both sides of the bracket. Please ensure that you have two mounting holes per side - Refer to the technical diagram for more information.
Typically used in pairs.
Packing & Delivery
Packaging | ||
Size | Glas to Glas Hinges 135° | |

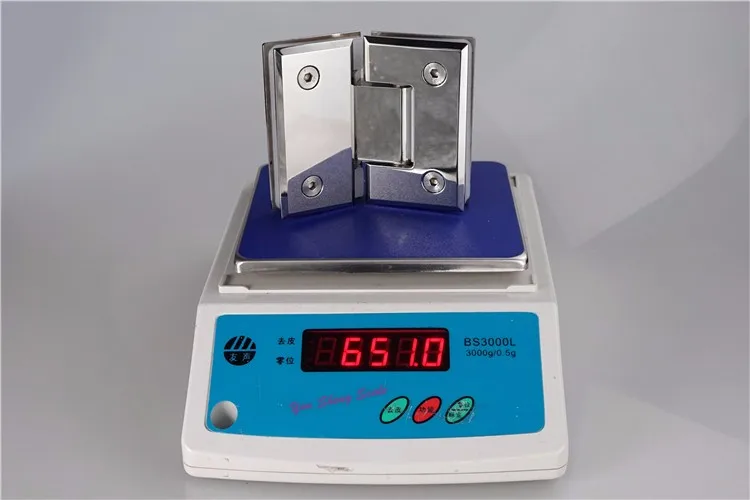

Weight | 651g | |
Summary | 135 degree door hinge designed to support a variety of large door materials and panels via 2 fixed mounting bolts per side. Can be opened inward or outward depending on fitting requirements. This hinge is designed for shower enclosures and quadrants which have a 135 degree angle between the fixed panel of glass and the glass door. | |
Packaging | ||
Carton Size | 37X21.5X21CM | |

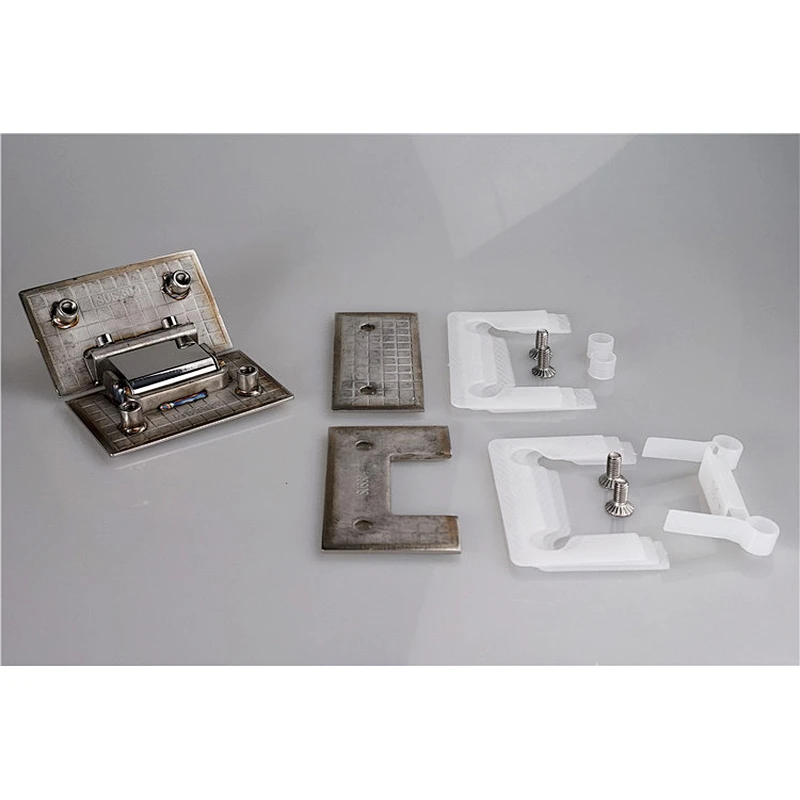

Packaging included | - The 135 degree chrome plated glass hinge - Allen key - Gasket padding (which will come already inside the hinge) - Glass cut out measurements tech sheet (please see the glass cut out in the image section | |
