- Type:Furniture Hinge
- Place of Origin:CN;GUA
- Brand Name:Metalway
- Model Number:MF-068
- Material:Stainless Steel
- Finish:Nickle Plated
- Opening angle:90-180 Degree
- Usage:Wall mount shower glass door
- Name:Spring Hinge
- Function:welding solid shower hinges
- plate thickness:5 mm
Product Application
MF-001A Glass to Wall 90° Shower Hinge open both ways. Hold at 90° two side fixing, auto close 8/10/12mm
64mm wide x 90mm high x 55mm deep (Glass drilling MM notch) Maximum weight 35KG per pair
Main Features
1) Stain plated wall mount frameless shower door hinge with full back plate.
2) These square edge shower door hinges are self-centering when within 15 degrees of closed position. 90 Degree in and out swing.
3) For use with 3/8"- 1/2"Tempered Safety Glass. Rated for 35 kg per pair.
4) Open/Close tested to at least 50,000 cycles.
5) Requires standard Mouse Ear glass cutout.
Shower hinges
Name:MF-068
Brand:Metalway
Original:China

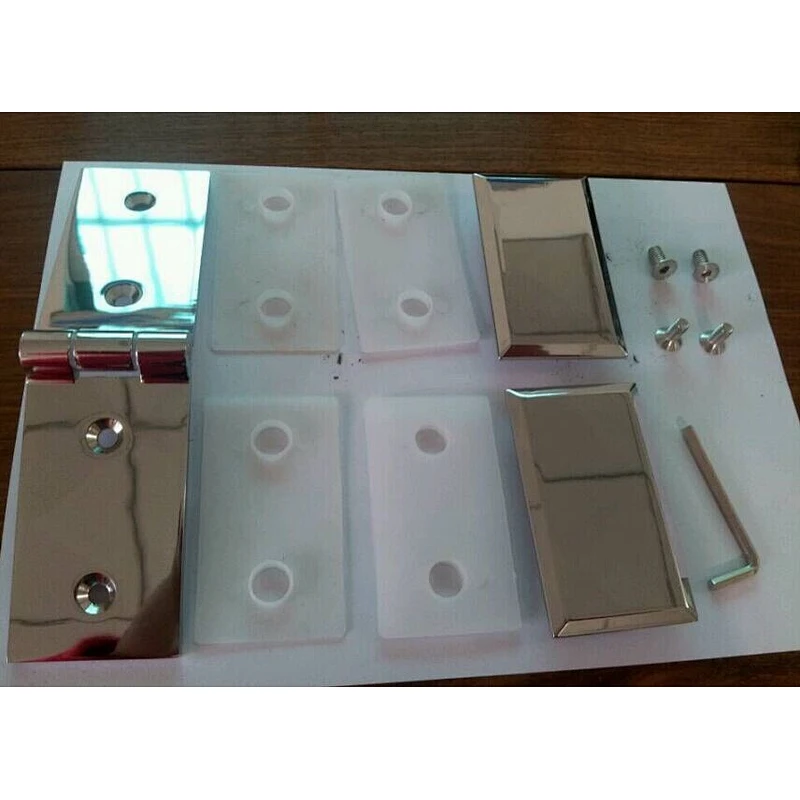

1- Hinge, 1- Glass Gasket Set, 2 -Types of Clamp Screws (Phillips and Allen), Allen Wrench, Installation Fasteners
Main Features
Name: Shower Door Hinge
Brand:MHL
Original: China
Standard specifications for 10mm glass, can be adapted to suit 6mm, 8mm or 12mm glass on request.
Welding shower hinges with white three PVC gaskets
Name: glass to glass shower hinges
Brand:Metalway
Original:China

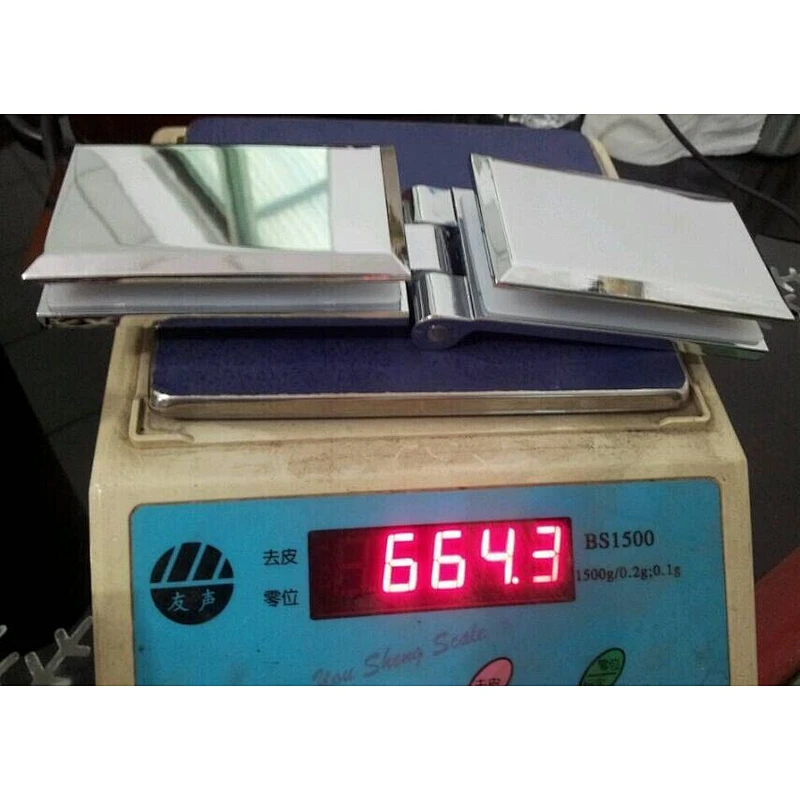

Weight: 664.3 g
We also supply zinc alloy stainless steel 316, 304, 201 shower hinges.
Name: double side shower hinges
Brand:Metalway
Original:China
Finish: chrome
straight side round corner, 4 holes bottom plate
